CS610-Computer Network Assignment no.2 Solution | spring 2018 | Due Date : 30 May, 2018

CS610-Computer Networking
Assignment 2 solution
spring 2018
Due date: 30 may, 2018


Please read the following instructions carefully before submitting assignment:

You need to use MS word document to prepare and submit the assignment on VU-LMS
It should be clear that your assignment will not get any credit if:
§ The assignment is submitted after due date.
§ The assignment is not in the required format (doc or docx)
§ The submitted assignment does not open or file is corrupt.
§ Assignment is copied(partial or full) from any source (websites, forums, students, etc.)

The objective of this assignment is to understand table entries of bridges and switches.

Question – 1

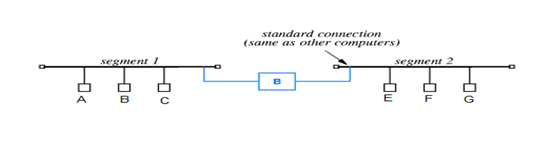

In a network, a bridge keeps the list of all the devices attached with the segment. The following figure shows computer A, B and C are connected to segment-1 and computer E, F and G are connected to segment-2.

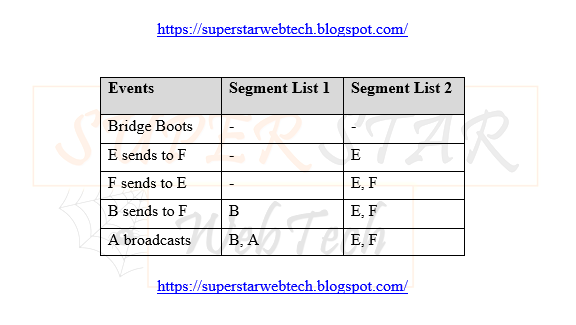

You are required to fill the following table with the specific information the bridge will store in case of event mentioned in the table.

Question – 2

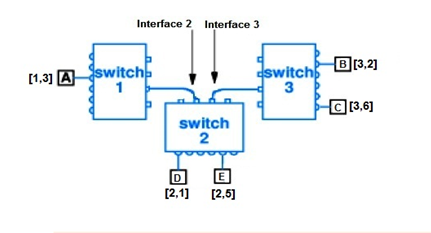

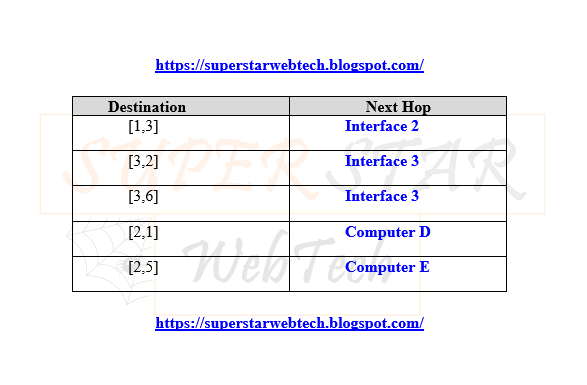

Following figure shows that different devices are attached with switches (1, 2 and 3). You are required to complete the entries for the Next Hop in the given table.
