CS610-Computer Networking ASSIGNMENT 3 Solution Spring 2018 Due date: 02 August, 2018

CS610–Computer Networking
Assignment no. 3
Semester: SPRING 2018
Total Marks: 20
Due Date: 02, August 2018

CS610-Computer Networking Assignment #Instructions
Please read the following instructions carefully before submitting assignment:
You need to use MS word document to prepare and submit the assignment on VU-LMS.
It should be clear that your assignment will not get any credit if:
  • The assignment is submitted after the due date.
  • The assignment is not in the required format (doc or docx)
  • The submitted assignment does not open or file is corrupt.
  • Assignment is copied(partial or full) from any source (websites, forums, students, etc.)
CS610-Computer Networking Assignment Objective

The objective of this assignment is to learn:

  • IP address classes and Subnetting
CS610-Computer Networking Assignment # 3


Question 1:

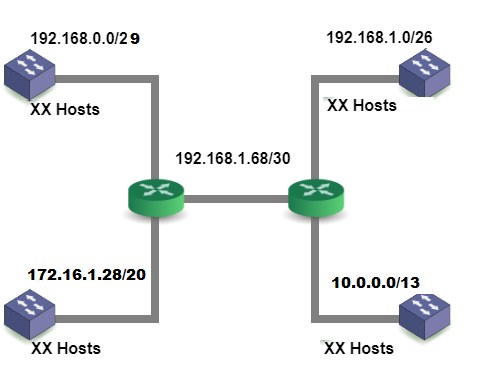

Following diagram has four subnets of different IP classes that are connected via WAN link. You are required to find maximum number of useable host that each subnet can accommodate. Write your answer in given table:


Subnet address
Maximum useable hosts
192.168.0.0/29
192.168.1.0/26
172.16.1.28/20
10.0.0.0/13


Question – 2

Suppose a university has a class C network 198.1.1.0 and wants to form subnets for its five departments, with hosts as follows:

Departments
Required No. of hosts
Math
60
Computer science
80
Management
55
Finance
35
HR
4

You are required to give a possible arrangement of Subnet Prefix/ CIDR to make this possible in following table:
IP address
Departments
Required No. of Hosts
Subnet Prefix/ CIDR
198.1.1.0
Math
60
198.1.1.0
Computer science
80
198.1.1.0
Management
45
198.1.1.0
Finance
28
198.1.1.0
HR
4

CS610-Computer Networking Assignment 3 #video

CS610-Computer Networking Assignment 3 solution File ! Download !

  CS610 Assignment_3 Solution Spring_2018 ————————— Download
